Sawmill Blade Guide Rollers 1-1/4" Blade Bandsaw Homemade MILL 1/2" Bore Bearing

Sawmill Blade Guide Rollers 1-1/4" Blade Bandsaw Homemade MILL 1/2" Bore Bearing

****For use with 1-1/4" Sawmill Blade**** READ ALL OF LISTING BEFORE BUYING..

If you are building a homemade sawmill. These rollers are a must to help keep the blade in place while cutting

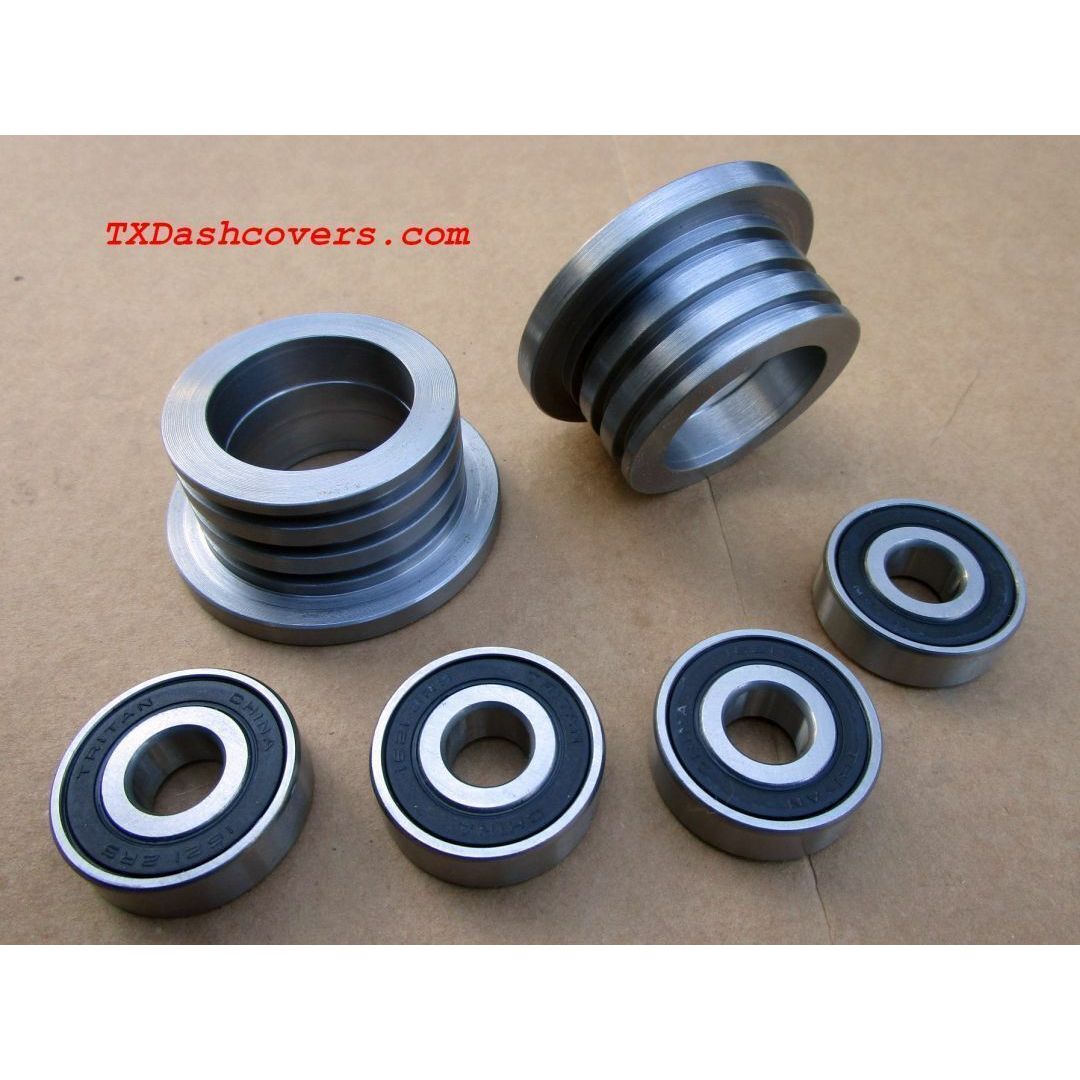

Qty-2 Rollers and 4 Bearings blade not included

**** Manufactured right here in Texas **** CNC Machined

RETURNS DO NOT INCLUDE SHIPPING COST

I take a piece of 1018 round stock and use a CNC mill & turn it down to the following sizes..

No mounting hardware.. you are buying just the roller guides and 4-Press fit bearings (not installed.). Bearing number will be on side of each one.. and they are easy to replace when necessary. tightened bolt keeps bearings compressed, no snap rings to deal with

Roller Guide weighs app. 1.4 Lbs..My guide is designed to help keep vibration down during operation

blade are for illustration purposes only and not included

Shaft not included-Make your own

press fit design

Designed for 1-1/4" blades only

Sealed bearings

Just under 1-3/16" across widest point of roller guide (Front to Rear)

App. 15/16" wide/deep where blade rides on pulley

2-1/2" wide Overall back flange diameter

3-Grooves for dust partical clean out

Flange at rear is app. 1/4" wide

Diameter of pulley where blade rides is app. 2" (outter diameter)

all sizes may vary a little..and are approximate

Bolt/shaft size for bearings 1/2"

Double sealed bearings..

1/2" spacer may be necessary when installed, depending on your set up..Not included

If you have any questions.. Drop me an email.. I also have some for the 1-1/2" blade

Check out our sawmill builds on youtube under Larry Sbrusch

If you need more than one of these , visit my store under industrial section..Normally these sell out just as fast as I can machine them..
